Grid Flow Editor
Applies to Dungeon Architect 3.7 · Unreal Engine
Let’s open the GridFlow asset in the editor:
Navigate to Dungeon Architect Content > Core > Runtime > Builders > GridFlowContent > FlowGraph and double click on DefaultGridFlow

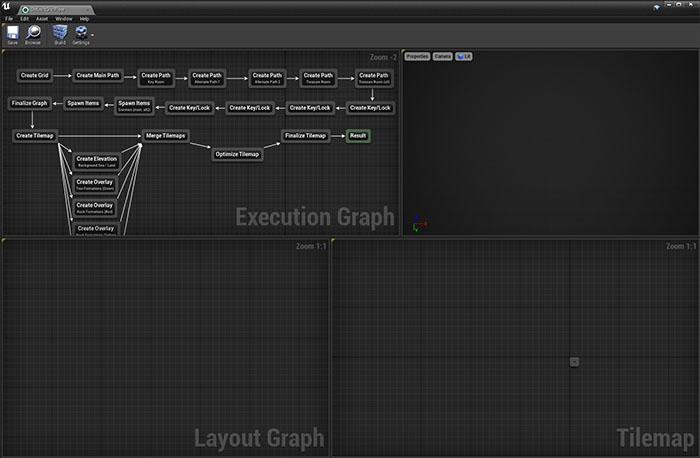

This will open the Grid Flow Editor

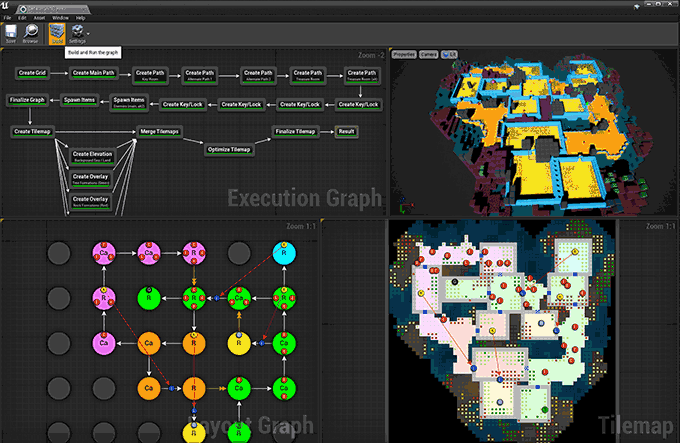

Click the Build button toolbar to build the graph
Keep hitting build to get a new dungeon
Click the image to play
Explore Grid Flow Graph

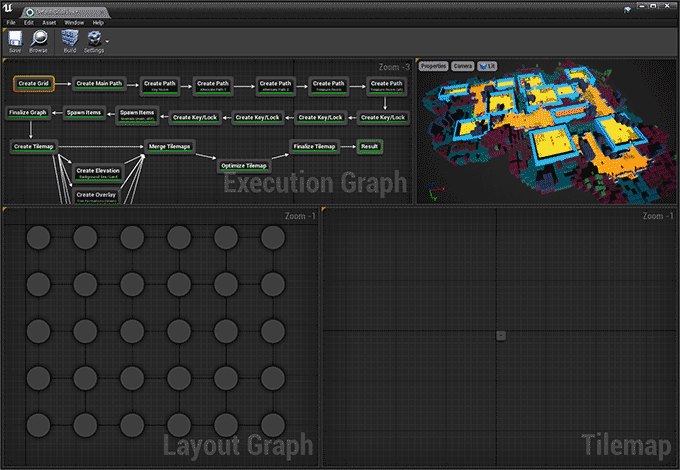

Section titled “Explore Grid Flow Graph”After you’ve built a dungeon in the editor (by hitting the Build button on the toolbar), you can select each node in the execution graph and see how the dungeon layout was built, as shown in the lower preview panels
Click the image to play
Editor Panels

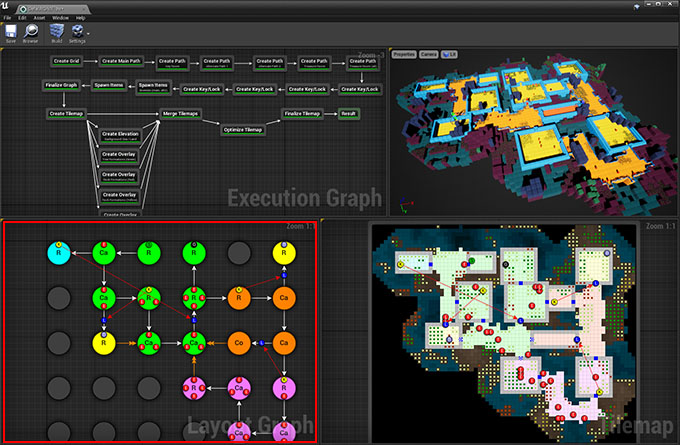

Section titled “Editor Panels”The Grid Flow Editor has the following panels
Execution Graph Panel
Section titled “Execution Graph Panel”This is where you design the flow of your dungeon. All other panels are for previewing the result of this panel
Layout Graph Panel
Section titled “Layout Graph Panel”The initial level is designed in a higher level layout graph
Tilemap Panel
Section titled “Tilemap Panel”The result of the layout graph is eventually transferred over to a tilemap. The resulting tilemap is previewed here
Preview Viewport Panel
Section titled “Preview Viewport Panel”The 3D representation of the final Dungeon
