Create your first Dungeon

Setup Dungeon Actor​

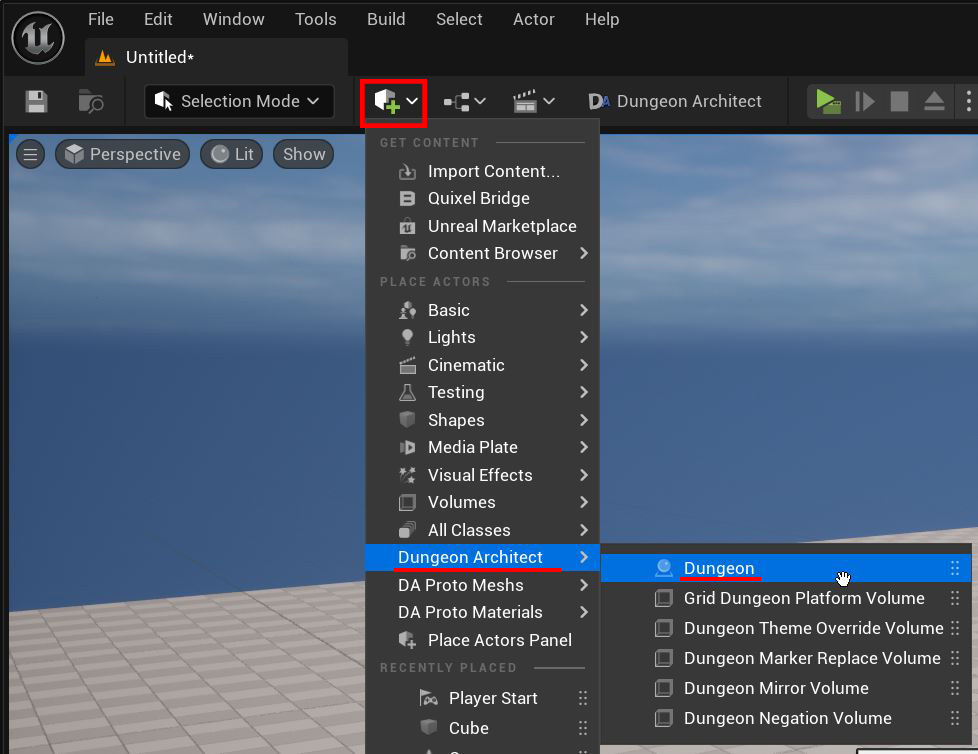

Create a new Level and drop in a Dungeon actor

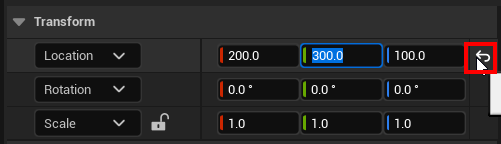

Reset the dungeon actor transform to (0,0,0)

Position the dungeon actor at any desired location/rotation to create the dungeon there.

Show Plugin Content​

We'd like to access an existing asset from Dungeon Architect plugin's content folder and we need to configure the Content Browser to show these assets

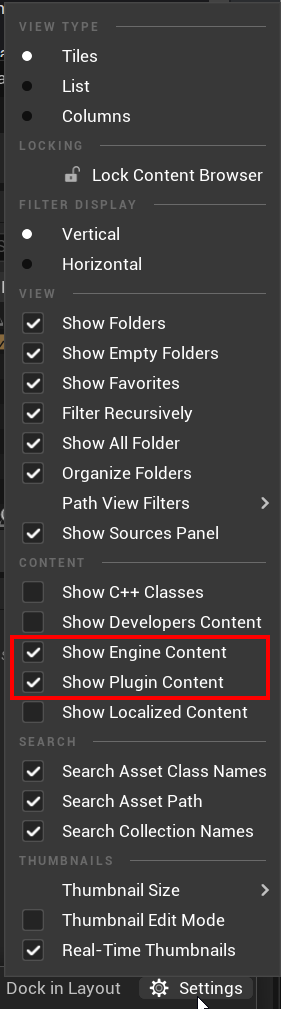

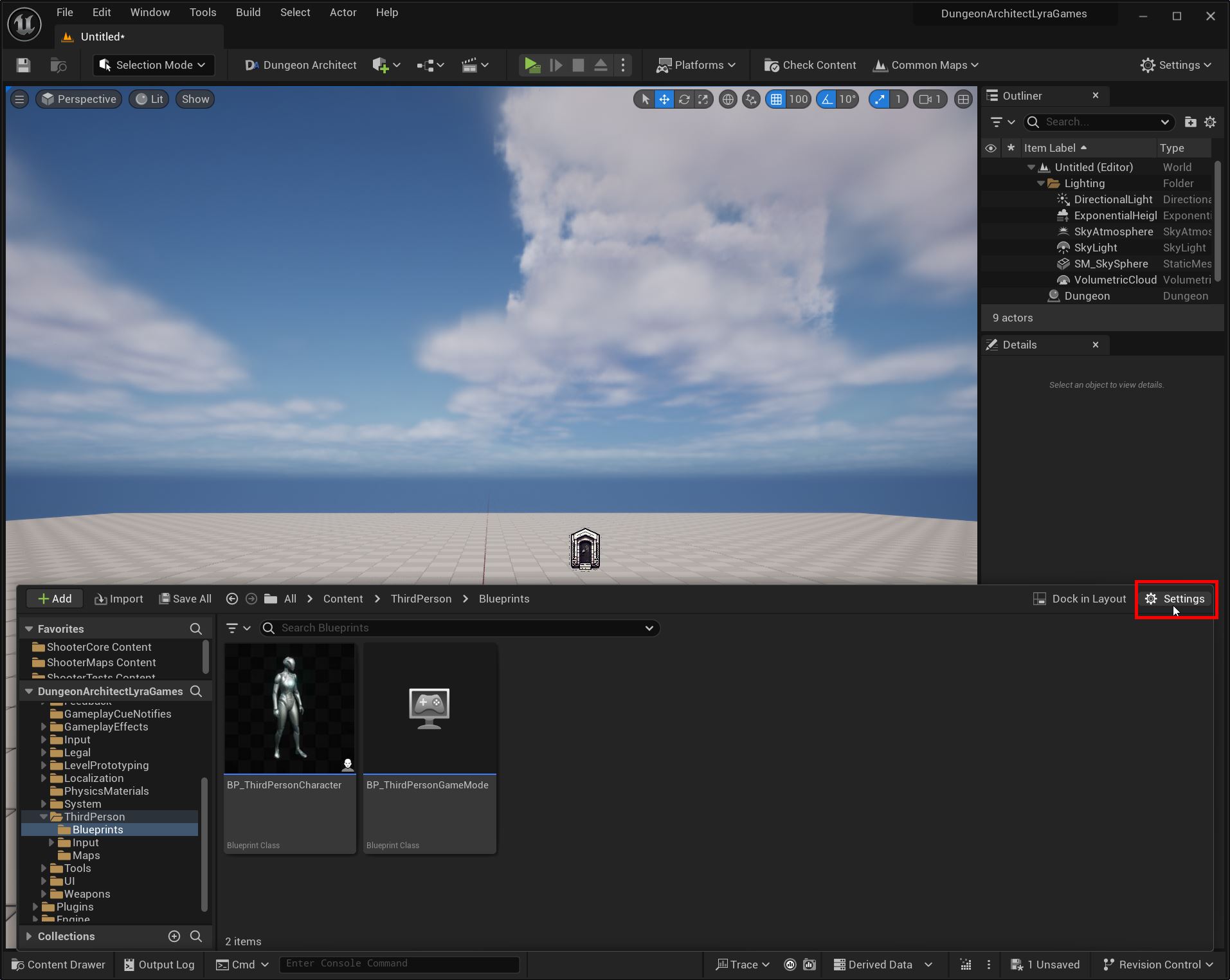

On the top right of the Content Browser window, click the Settings button

Assign Theme​

A theme file defines the assets to use to build the dungeon. Assign an existing theme to the dungeon actor

Select the dungeon actor and inspect the Details panel

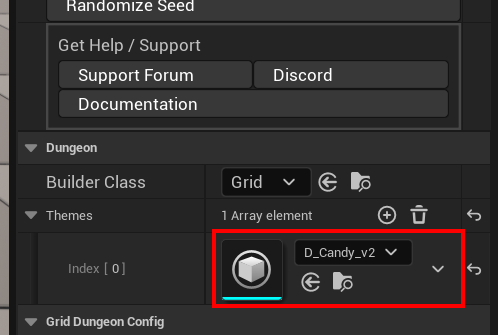

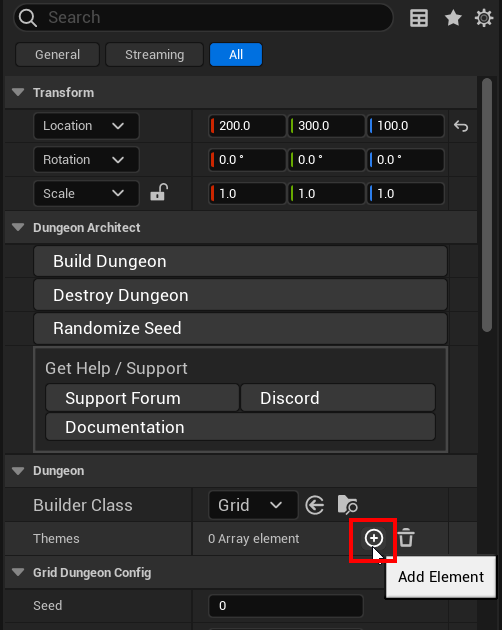

Add a new Theme array entry by clicking the plus icon.

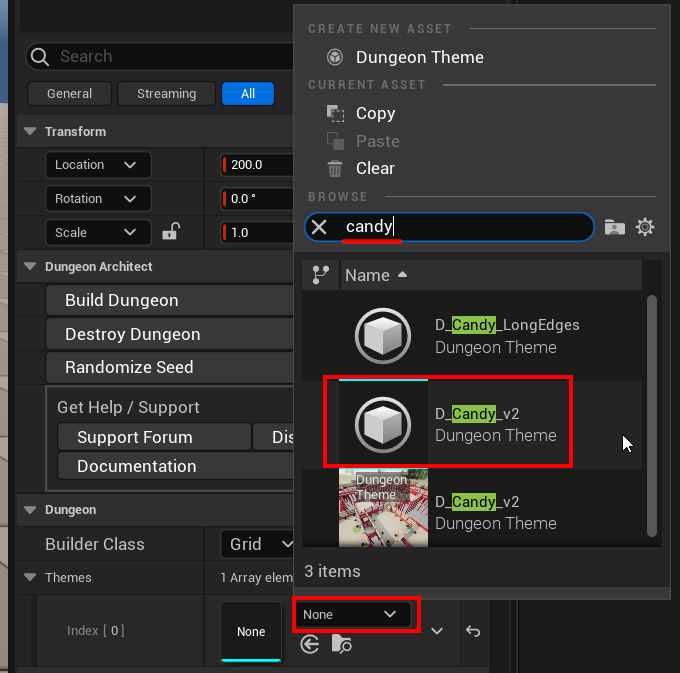

Search for candy and select the candy theme

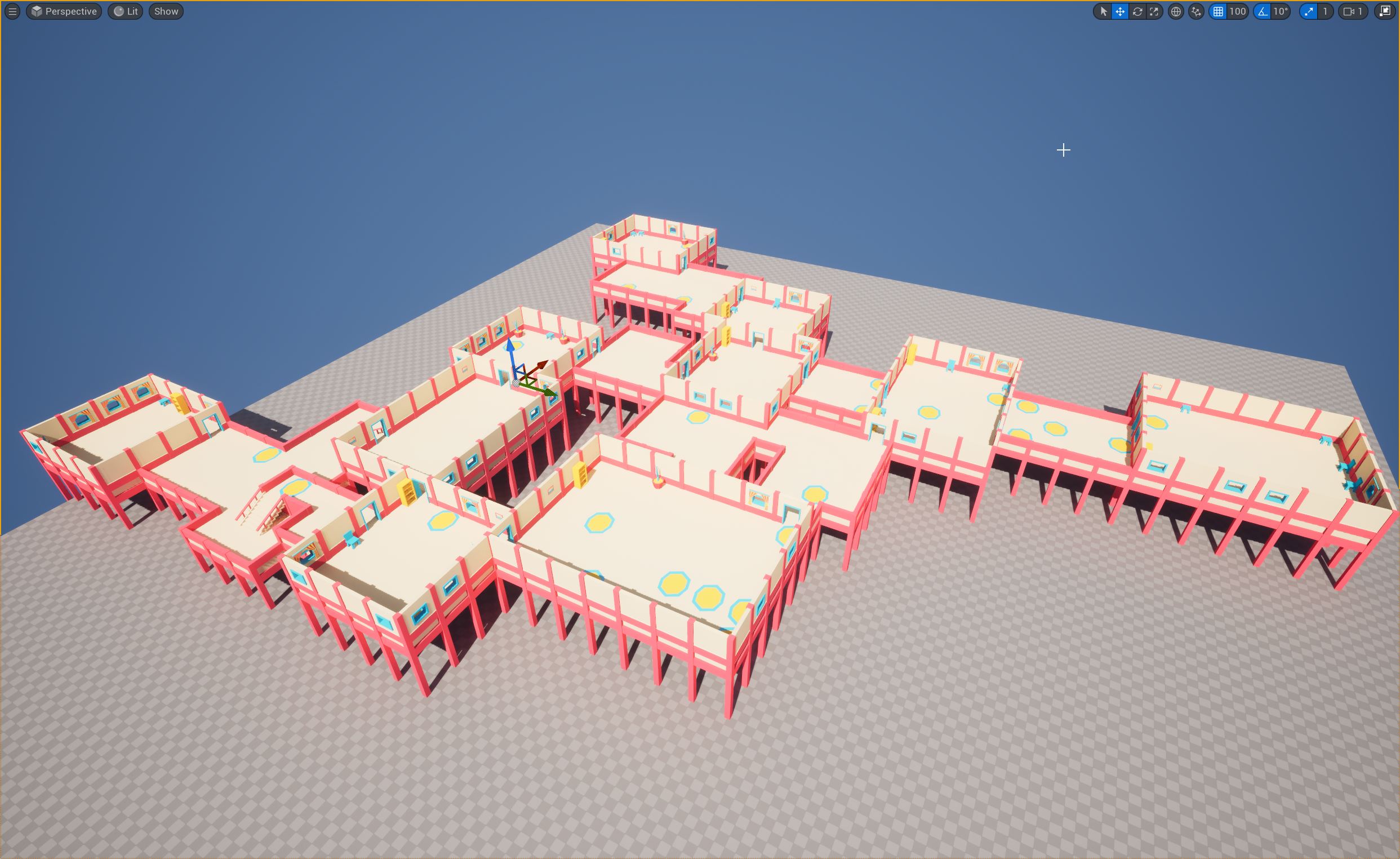

Build Dungeon​

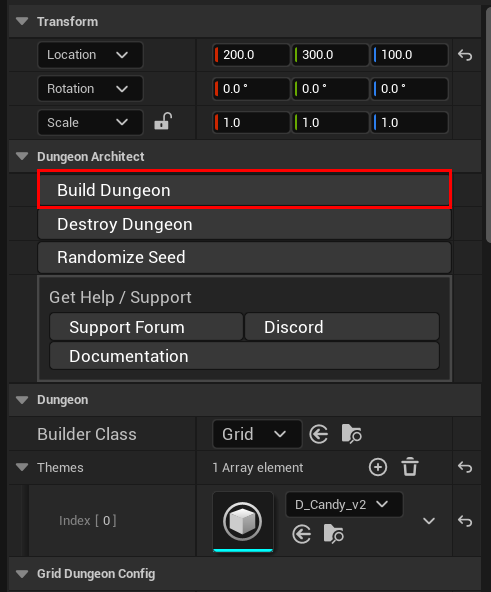

  • Select the Dungeon actor and inspect the Details Panel
  • Click Build Dungeon button to generate the dungeon

Randomize Dungeon​

  • Select the Dungeon actor and inspect the Details Panel

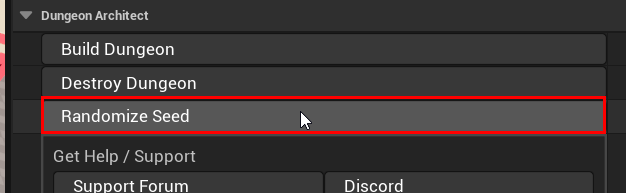

  • Click Randomize Seed

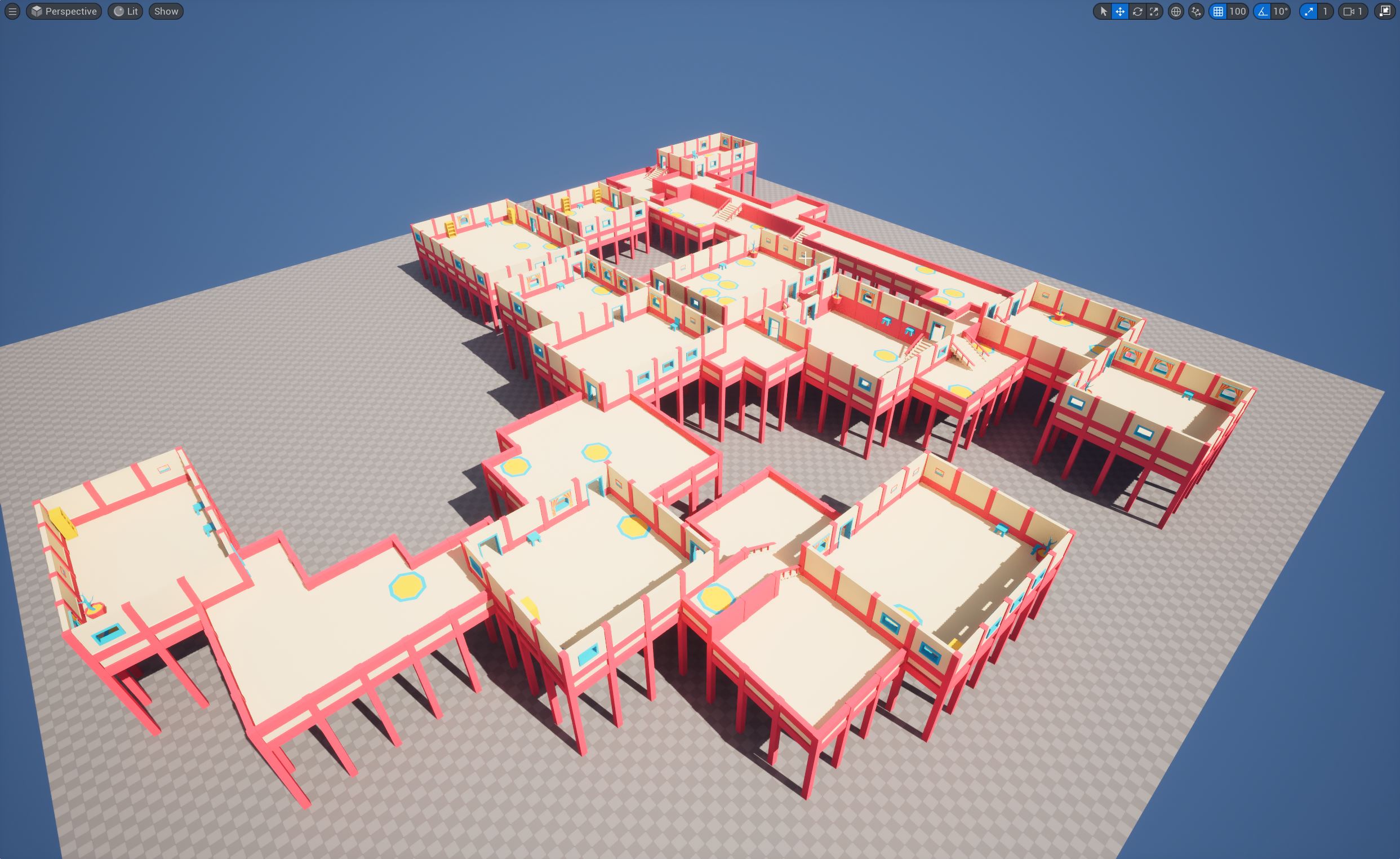

  • Click Build Dungeon to generate a new dungeon with a different layout

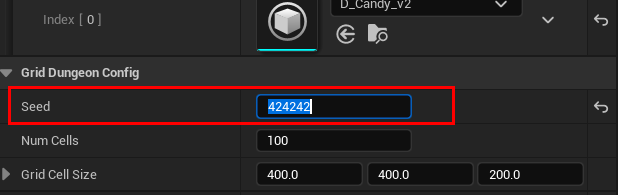

The Randomize Seed button is a helper function which simply changes the Seed value in the dungeon configuration. Changing the Seed value changes the layout of the dungeon. If you assign a random value to a seed and build, you'll get a new dungeon layout

Organization​

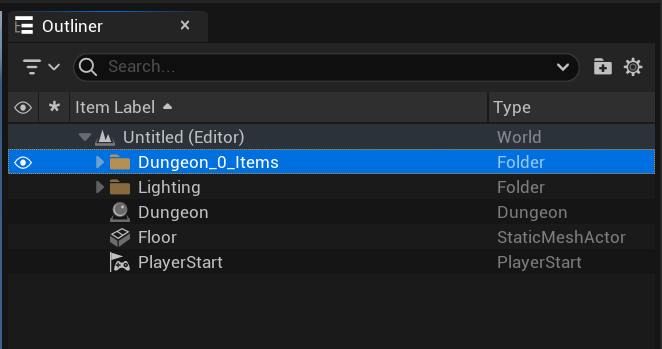

When you build a dungeon, all the spawned dungeon actors are placed under a folder named after the dungeon actor's label
