Modules

A room is designed in a separate prefab, and it is called a Module

All Modules in the Snap Grid Flow builder have a fixed size called the Chunk Size. Your module size can be in mulitples of this size (e.g. you can create a taller room of size 1x2x1 or a bigger room 3x2x3)

Module Bounds

Start by creating a Snap Grid Flow - Module Bounds asset. You will assign the size of your modules here and use it while designing the modules

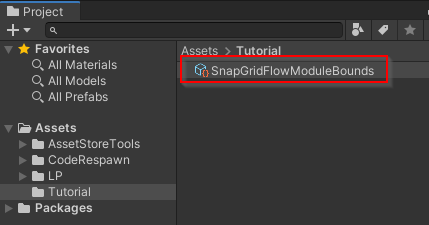

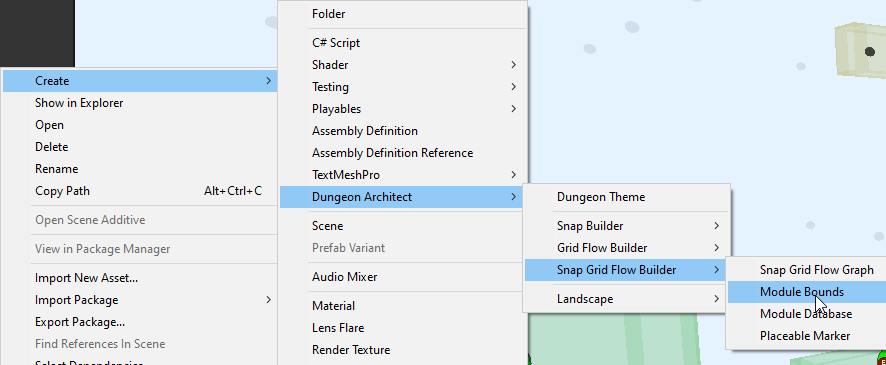

In the Projects tab, navigate to the desired folder and create the Snap Grid Flow Module Bounds asset

Double click the asset to open the editor

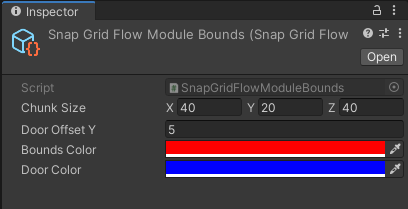

• Set the Chunk Size to something like (40, 20, 40). The X and Z has to be the same if you want your modules to support rotation. In this case, we've provided 40 for both
• Set the Door Offset Y to 5.

Door Offset Y determines how high the door is from the base of the module. It is a good idea to leave some gap, so you have space to create some pits or lower areas

You'll use this asset on each of the module prefabs you design

Create a Module

Modules are rooms that are designed and saved into a prefab. We'll design a new room module prefab

• Create a new scene

• Create an empty game object and name it to Room_1x1A

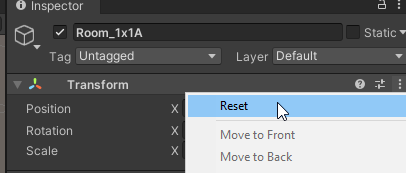

• Reset the prefab transform

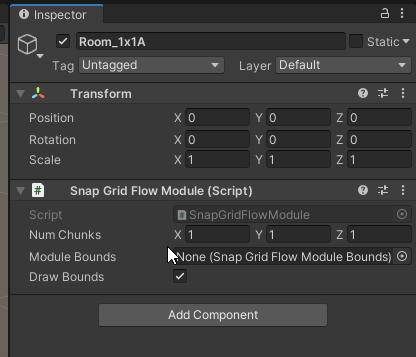

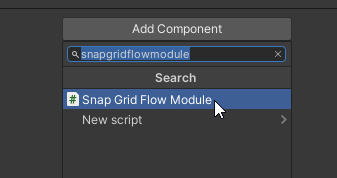

• Add the Snap Grid Flow Module component to it

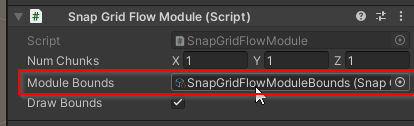

Assign the module bounds asset we created earlier

Your module prefab will now provide visual information that will help you design your room

note

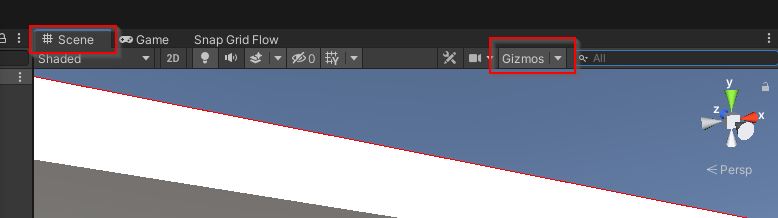

If you don't see the red lines, make sure the Gizmos button is pressed in the Scene View tab's toolbar

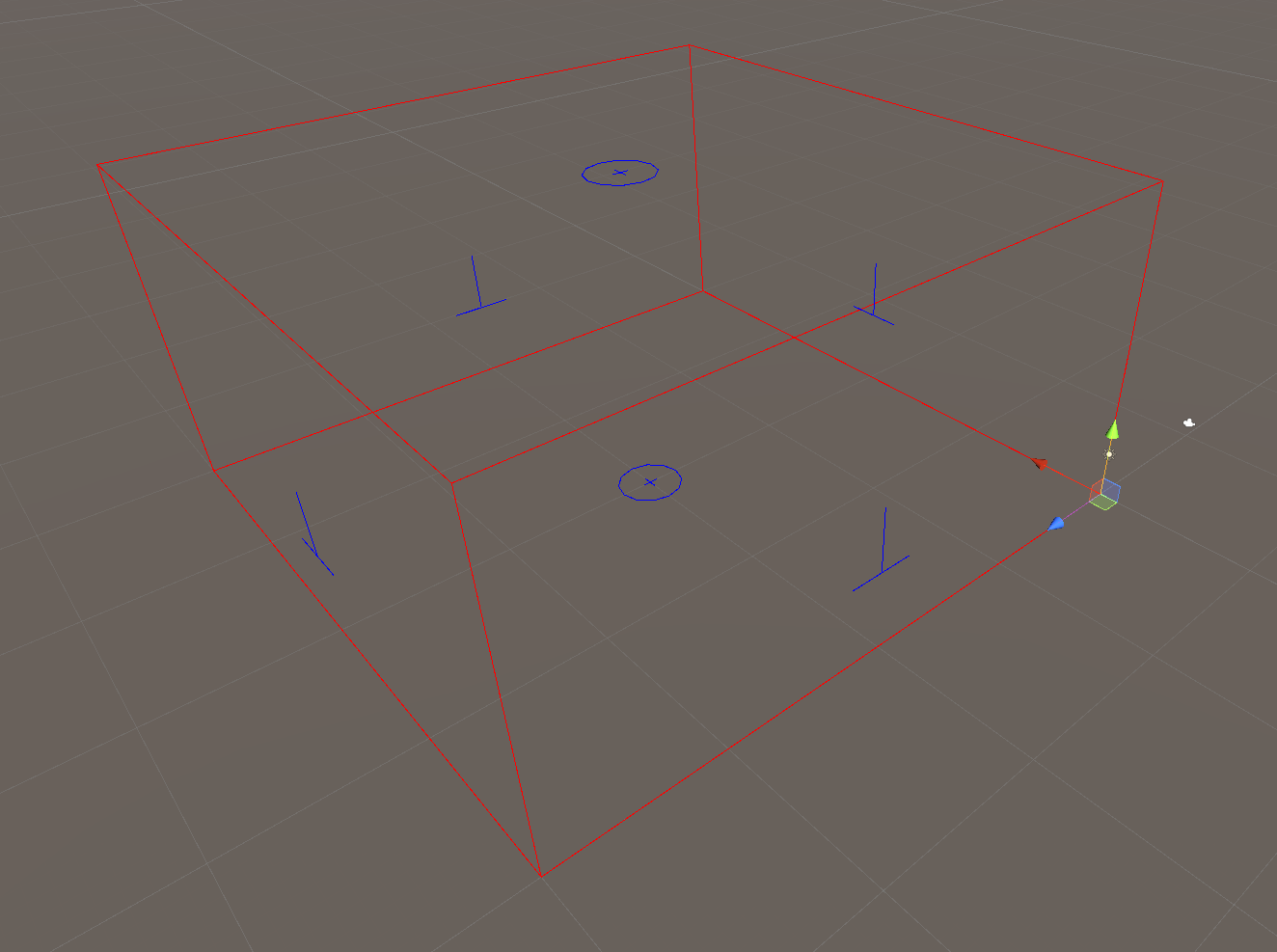

The red wireframe indicates the bounds of your module. You may fill this up in any way you like.

The blue indicators show the possible locations of the doors

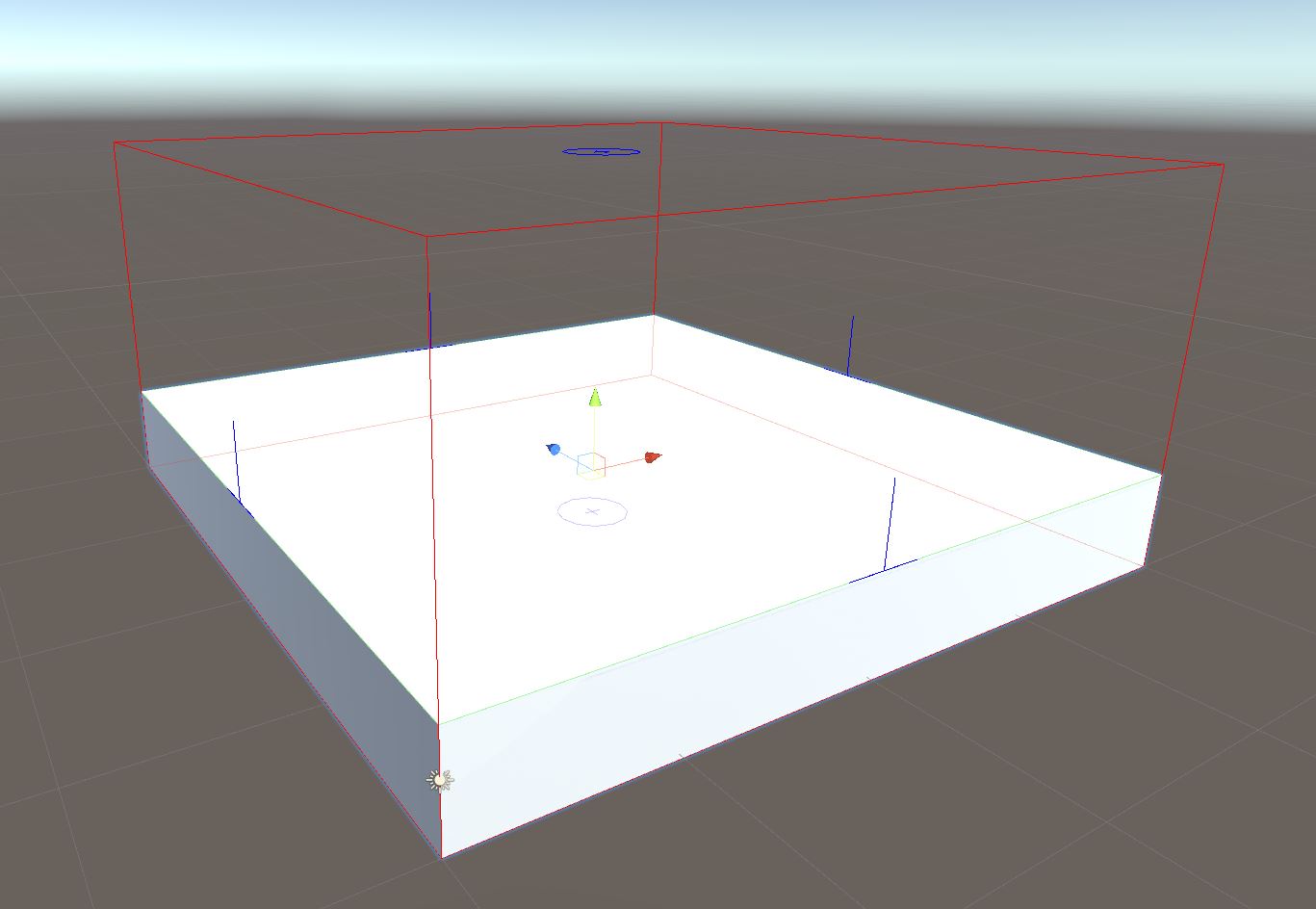

Design your module inside the level bounds.

Note how the ground mesh was aligned to a height where it matched the door indicators (blue lines). These blue lines were previously configured to be 5 units above the module's base (DoorOffsetY)

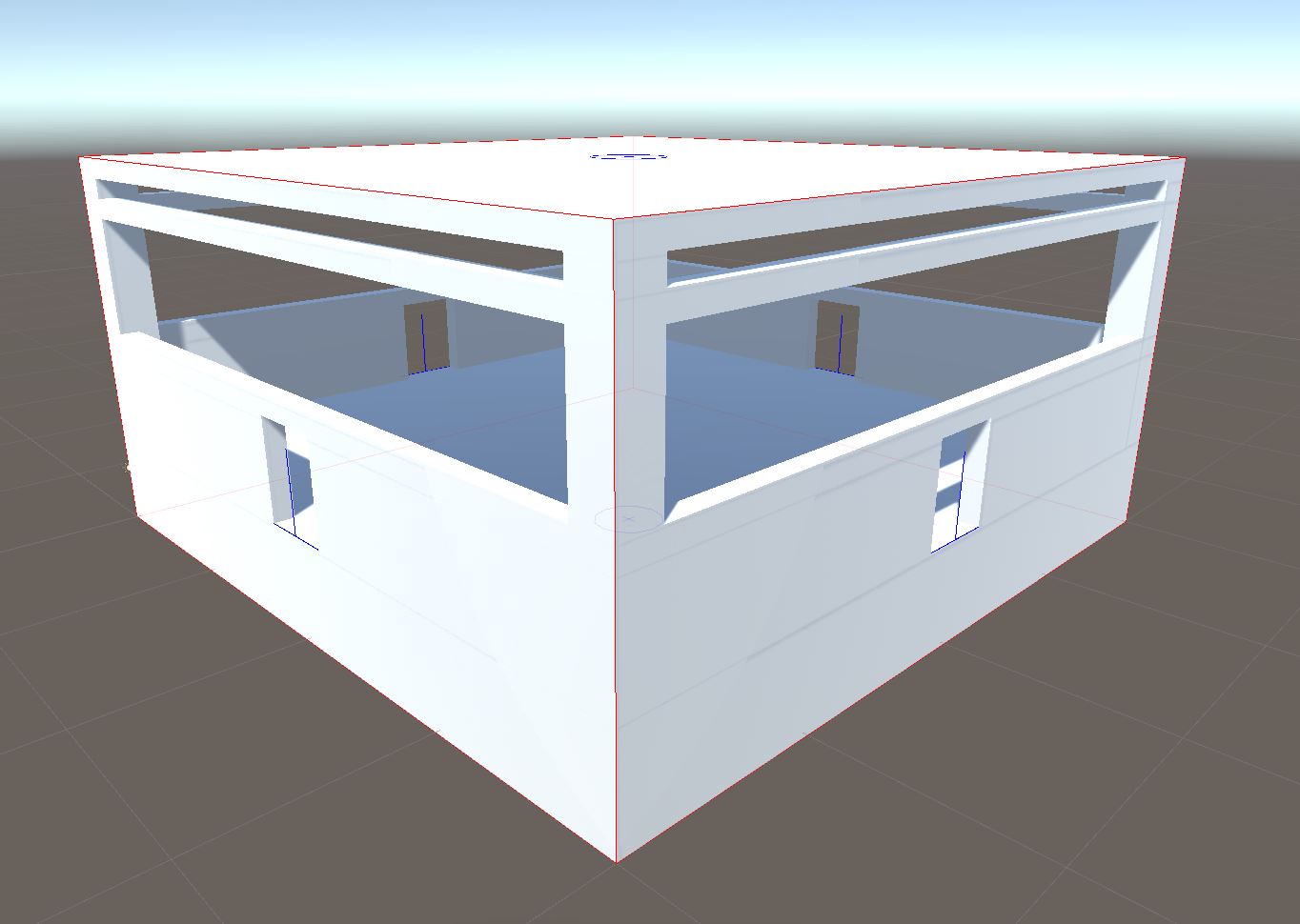

Go ahead and design the rest of the room in any way you like

note

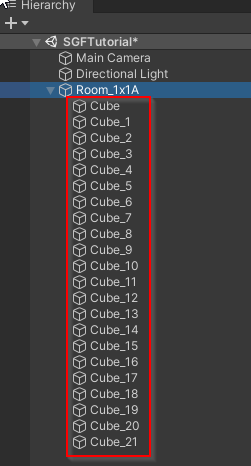

Make sure all your game objects are inside the module game object

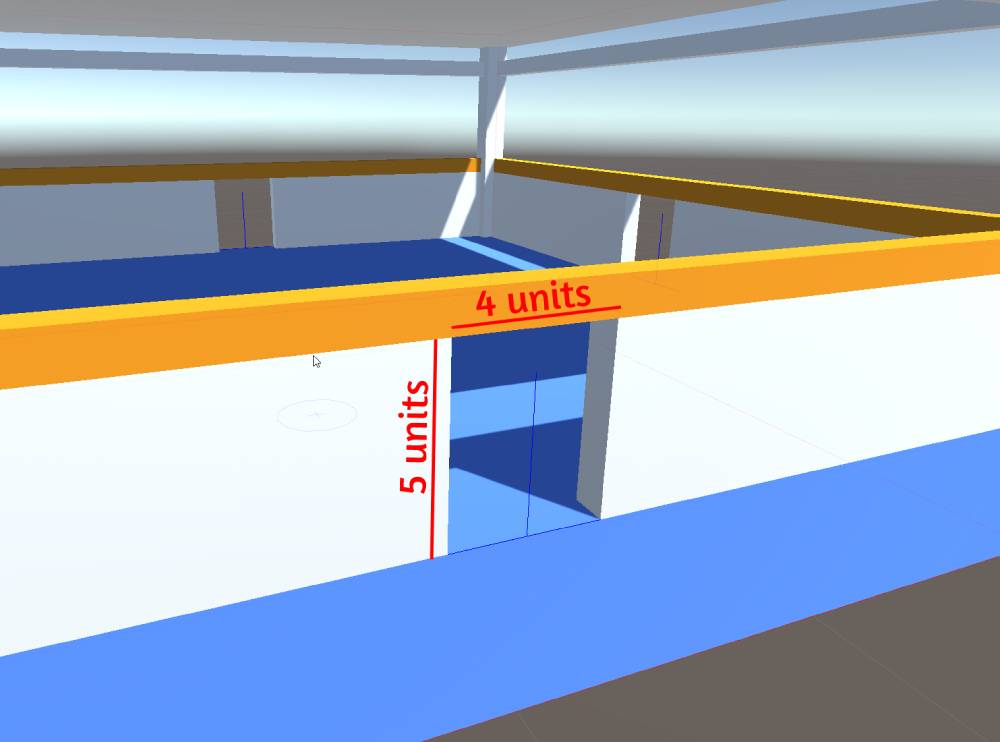

In this simple example, we want to have doors on all the 4 sides. A gap of 4 wide / 5 high was left out at the door openings. Our door and wall assets will eventually be of this size to fill up the gap

Do this for all the four doors

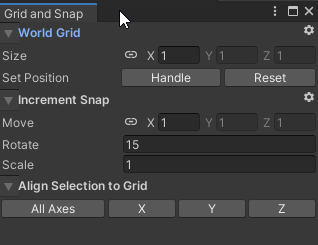

While designing the rooms, it is always a good idea to use Grid snapping (Edit > Grid and Snap Settings)

More info on snap settings here

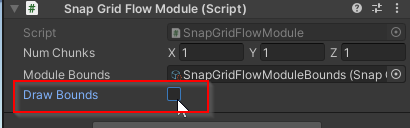

You can always turn off the module bound visuals (the red box) if it gets in the way. Do this by unchecking Draw Bounds in the Snap Grid Flow Module component

Save as Prefab

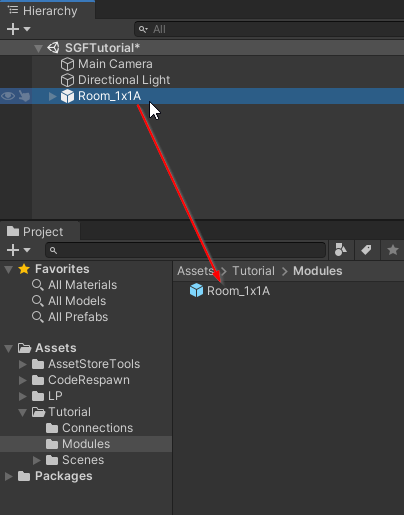

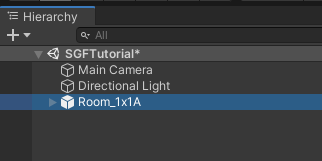

Select the module game object Room_1x1A and save it as a prefab in some folder

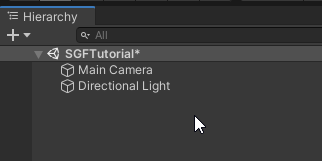

Now that we have it saved as a prefab, delete the module game object from the scene

In the next section, we'll create a Connection and add it near the door openings
