Create your first Dungeon

Install Dungeon Architect#

Install and import Dungeon Architect from the Asset Store. You should see the following folders:

Setup Dungeon Prefab#

Create a new Scene

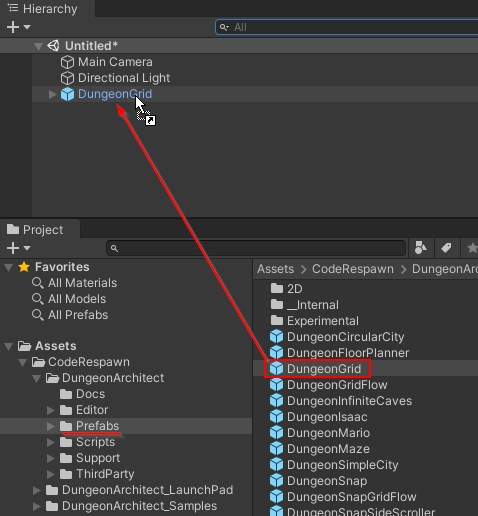

Navigate to CodeRespawn > DungeonArchitect > Prefabs and drop in the DungeonGrid prefab on to the scene

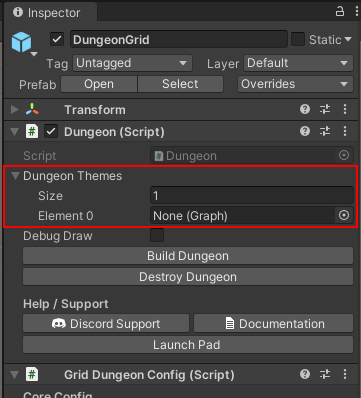

Select the dungeon game object and inspect the properties. We'll need to assign a new theme before we can build the dungeon

Assign Theme#

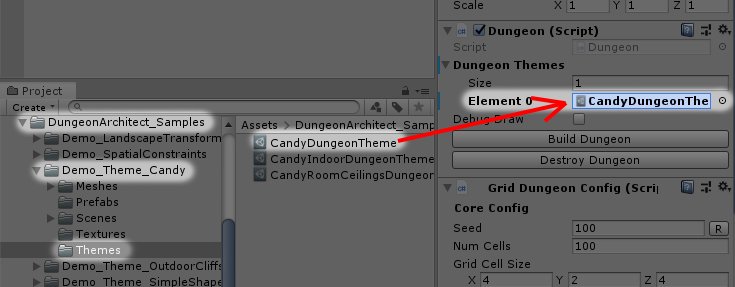

Assign an existing theme to the dungeon actor

  • Navigate to Assets\DungeonArchitect_Samples\Demo_Theme_Candy\Themes
  • Assign theme file named CandyDungeonTheme as shown in the image below

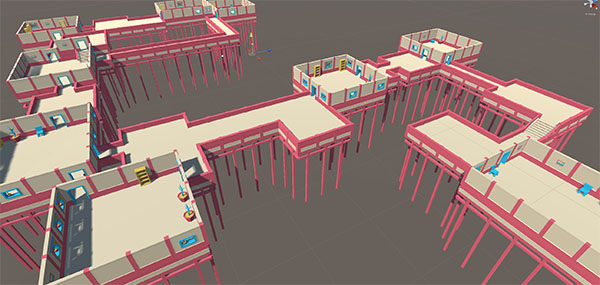

Build Dungeon#

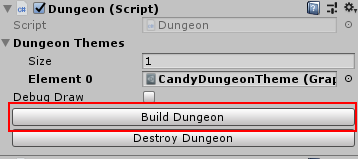

Select the DungeonGrid game object and click the Build Dungeon button in the Inspector window

Randomize Dungeon#

Select the DungeonGrid game object and change the Seed value in the configuration. Changing this value will create a dungeon with a different layout

Click Build Dungeon button to rebuild the dungeon with the new seed

Organization#

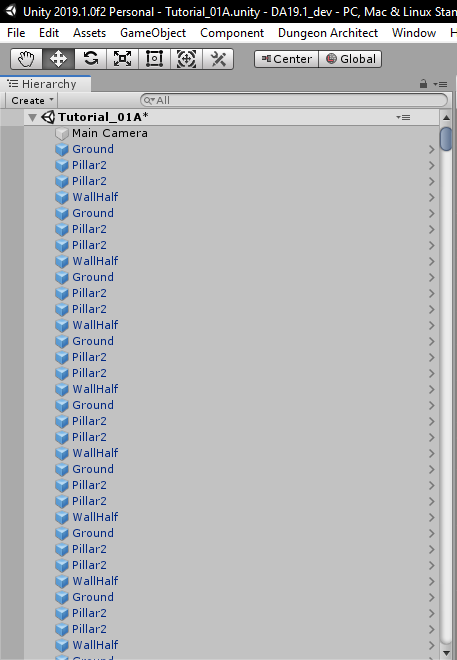

All the dungeon objects are created on the root hierarchy and makes it difficult to organize. We'll configure it so all objects are spawned under a certain game object

Lets destroy this current dungeon, configure it for better organization and then rebuild

Destroy Existing Dungeon#

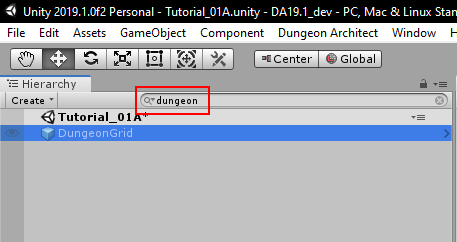

Search for dungeon on the hierarchy search box

Select the DungeonGrid game object and click the Destroy Dungeon button

Clear out the search text box in the hierarchy. Your hierarchy should now look like this

Configure Parent Object#

Create an empty Game Object. All our dungeon items will go inside this parent object

Create an empty game object

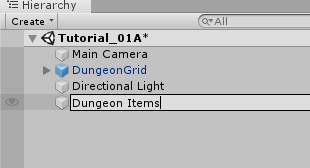

Rename the parent object (e.g. Dungeon Items)

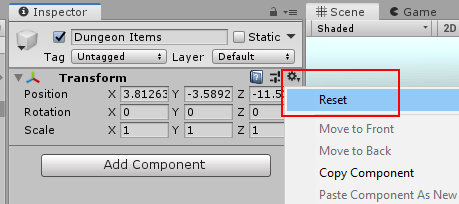

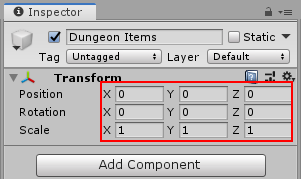

Select the parent object and Reset the transform

Select the parent object and set it to static

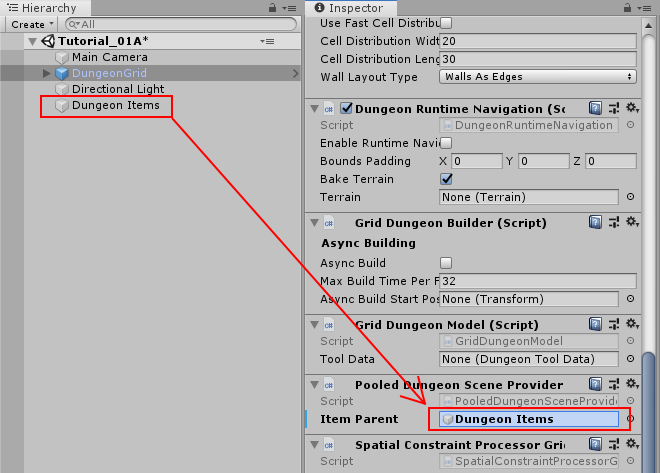

Assign the parent object to the GridDungeon game object

Rebuild Dungeon#

Select the GridDungeon game object and click Build Dungeon

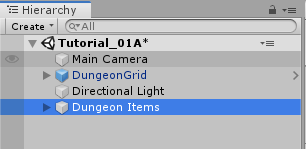

All your dungeon game objects will be organized under the parent object
