Selection Rule

Overview

We use the probability parameter to decide if we want to select and insert a certain object into the scene. If you need more control, you could write your own selection rules scripts

API

Create a C# script that inherits from DungeonArchitect.SelectorRule

Override the following method

bool CanSelect(PropSocket socket, Matrix4x4 propTransform, DungeonModel model, System.Random random)

Parameter	Description
socket	The information about the marker
propTransform	The final transform of the object that will be inserted
model	The dungeon model object. You'll want to cast it to the approprirate model (e.g. GridDungeonModel and read the layout info if needed)
random	The random stream. If you rely on any randomness, this object should be used to create consistent results in the dungeon

Example

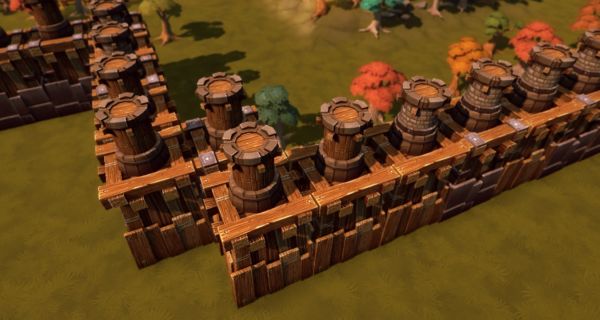

In this example the towers are too crowded and close to each other.

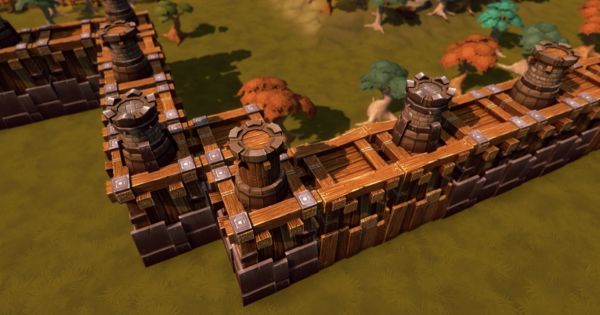

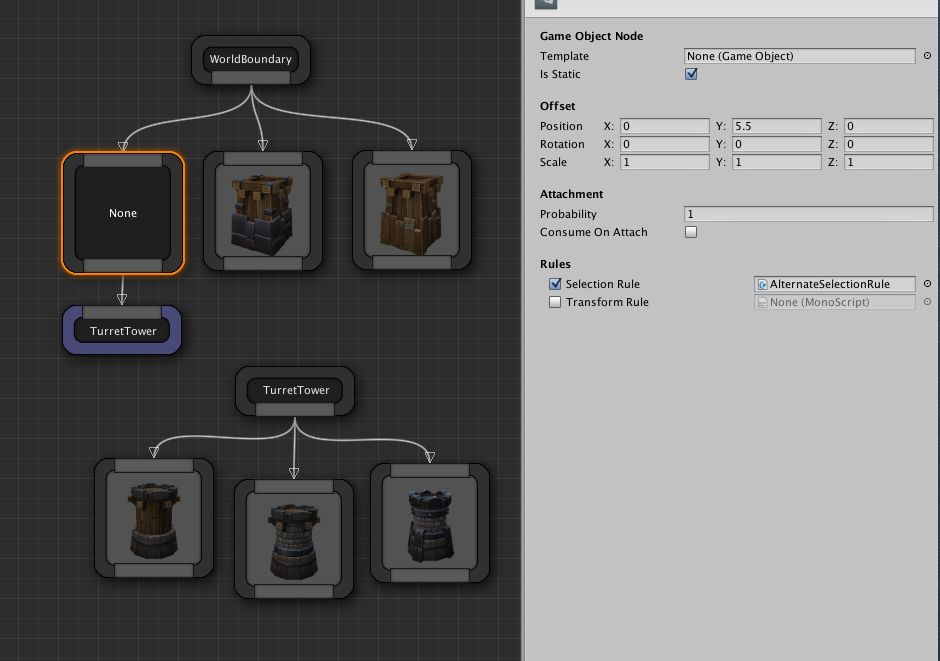

A selector rule is created to select alternate cells

using UnityEngine;
using System.Collections;
using DungeonArchitect;

public class AlternateSelectionRule : SelectorRule {
    public override bool CanSelect(PropSocket socket, Matrix4x4 propTransform, DungeonModel model, System.Random random) {
        return (socket.gridPosition.x + socket.gridPosition.z) % 2 == 0;
    }
}
